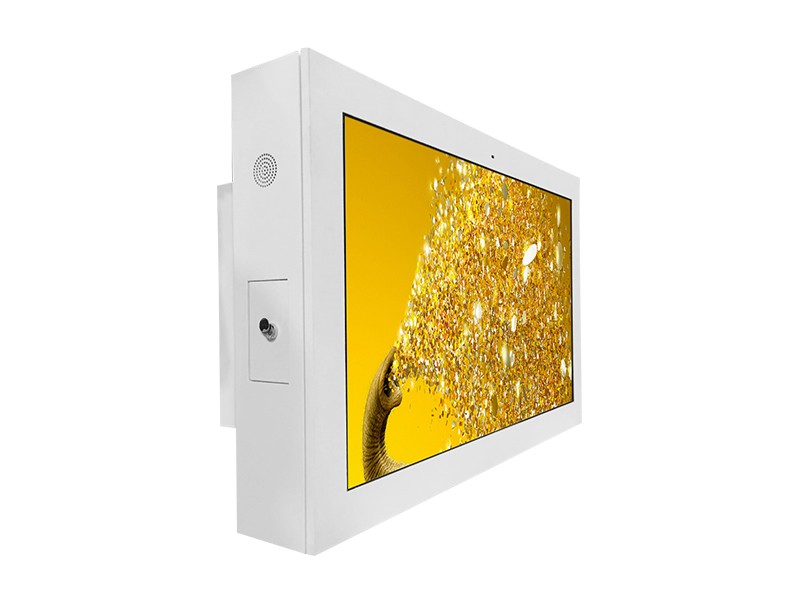

32 inch IP65 Outdoor All Weatherproof Wall Mounted Digital Signage

  • Product Item:XDT-320B
  • Display size: 32 inches
  • Waterproof grade: IP65
  • Screen brightness: 1500cd / m2
  • Panel Brand:Samsung/LG/BOE Full New 100% A(optional)
  • “32 inch outdoor waterproof digital signage”,"Waterproof digital signage"
    Inquiry Send Email

    Description

    32 inch outdoor waterproof digital signage


    Product Description:


    32 inch  Wall-Mounted Outdoor Digital Advertising Display


    Direct Sunlight Readable
    Designed for the challenge of direct sunlight, these displays use commercial grade ultra high brightness panels (2,500cd/m²); up to 10 times brighter than a domestic television.

    Weatherproof
    Designed with a rugged, corrosion protected, outer casing to give protection from the elements. The outer casing has an IP65 rating which means it keeps out airborne swarf, dust and other particles as well as being protected from any wet weather conditions.

    Vandalproof
    The enclosure is made from mild steel as well as having a thermally toughened glass front. Controls and inputs are also hidden and not accessible to passers-by to avoid tampering.

    Advanced Temperature Control System
    The internal airflow system keeps your screen running at the optimal temperature regardless of the external conditions to maximise the life of your product. Built in air-conditioning can be tailored to allow the display to work in any climate.

    IP65 Rated Sturdy Enclosure
    An IP65 rating means that display is able to withstand all wet weather conditions and also features waterproof over moulded AV connectors.

    Anti Reflective Glass
    The front glass face is specially treated which helps to diffuse direct sunlight making the display easily readable in bright weather conditions.

    Plug and Play
    Plug and Play is the most straightforward way to upload content to the screen. Simply load images and videos onto a USB stick, insert into the display, wait for your content to copy over and then remove. Your images and videos will now play in a continuous loop.

    Lockable Wall Mount
    A lockable wall mount is included at no extra cost, allowing you to securely mount your screen in either landscape or portrait orientation; ensuring that you have a complete turnkey solution.

    Ambient Light Sensor
    The display has a light sensor that changes the screen’s brightness depending on the ambient light ensuring the most suitable brightness at any time of the day.

    Internal Locker
    Should you need connect the screen to an external source, like a PC or media player, you can use the HDMI input or the VGA and 3.5mm audio jack inputs and hide the player inside the internal locker.

    Optional Network Upgrade
    For a small charge you can upgrade your screen to be networked, allowing you to connect your screen via Wi-Fi, LAN or 4G, then remotely update it over the internet.

    Hardware Modifications
    These displays can be adapted in a variety of ways including the integration of a 4G module or camera.

    PCAP Touch Screen
    State-of-the-art projected capacitive technology provides the most responsive and sensitive touch experience available, as well as offering superior optical quality. Unlike other touch technologies, PCAP is not affected by dust or debris on the surface of the screen.
    These Wall-Mounted Outdoor Digital Advertising Displays are also available in sizes, from 18.5inch up to and including 98 inch


    The brightness of the screen can reach 2500cd / m2, which can be clearly displayed in the sun
    The waterproof grade reaches IP65 and can be used normally in rainy weather
    The shell is made by anti-corrosion process, which can prolong the service life

    Different shapes can be made according to customers' requirements


    2、Product parameters:

    Model Windows version Android version
    Screen Panel Brand Samsung/LG/BOE Full New 100% A(optional)
    Panel size 32″ (19” ~86”)
    Display size 698mm(V)×362mm(H)
    Display ratio 16:09
    Resolution 1920*1080
    Viewing angle 178°/178°(H/V)
    Color 16.7M
    Back light LED
    Brightness 2500 cd/m2
    Contrast ratio 3000:01:00
    OS System main board:i5-3317U(optional) CPU:RK3288(optional)
    RAM:4G (optional) RAM:2G
    ,SSD:128G(optional) EMMC:8G(optional)
    Operation Win7(optional,win8,win8.1,win10) Android 6.1(optional,Android6.1/7.1.2/8.2/9.0)
    Connection to network RJ45, WIFI (4G,optional) RJ45, WIFI (4G,optional)
    Touch Screen
    system
    Touch ways finger,touch pen finger,touch pen
    Touch dots 10dots (optional,20dots,40dots) 10dots (optional,20dots,40dots)
    Durability More than 50 million touch More than 50 million touch
    Power Power 330W 330W
    Voltage AC100-240V 50/60HZ AC100-240V 50/60HZ
    Stability good good
    Instructions Interface VGA/HDMI/USB HDMI/USB/SD
    Working -30°C — 60°C(with air condition) -30°C — 60°C(with air condition)
    temperature -10°C — 55°C(with air follow exchange) -10°C — 55°C(with air follow exchange)
    -30°C — 55°C(with air follow exchange+heater) -30°C — 55°C(with air follow exchange+heater)
    Material Aluminum alloy,tempered glass Aluminum alloy,tempered glass
    Surface Spraying,frosted aluminum Spraying,frosted aluminum
    Size Undetermined Undetermined
    Weight Undetermined Undetermined
    Body Shell Galvanized steel sheet. Thickness:2mm.
    Color Black , white , silver or customized colors
    Packing By carton, wooden case, flight case (optional)
    Optional Functions Anti-dazzle、Anti-graffiti、Anti-glare,Anti-refection、
    Anti-UV、Anti-IR、Water-proof、dust-proof、vandal proof
    3G/4G Capability
    Human sensor、Light sensor、Screen sensor、Humidity sensor、Temperature sensor、
    Vibration sensor、Safty monitoring sensor、Ponding sensor、Smog sensor、Collision sensor、Tilt sensor


    3、Product effect
