  • Face recognition thermometer
  • Face recognition thermometer
  • Face recognition thermometer
Face recognition thermometerFace recognition thermometerFace recognition thermometer

Face recognition thermometer

  • Product Item: DTYS08-9
  • Display size: 8 inches
  • Function: Face recognition / temperature test
  • Fuselage size:239*139.9*17.9mm
  • Operating system: Android 7.1
  • Face recognition thermometer
    Inquiry Send Email

    Description

    Face recognition thermometer + automatic alcohol stel



    remarks:


    This product is an upgrade of dtys08
    Automatic alcohol sterilizer is added according to customers' needs

    More suitable for hotels, restaurants, supermarkets and cinemas

    Face recognition thermometer

    Product structure

    1、Microphone   2、Infrared complementary light  3、RGB camera  4、IR camera  5、Fill light(White: Fill light Green: Pass Red: No Pass)
    6、
    Human detection(Infrared laser ranging) 7、Multi-point capacitive touch screen 8、Card reading
    9、Fixed screw holes、 10、USB debug port  11、USB 3.0
    12、Speaker holes  13、Anti-dismantle(Can be used as system reset button)、14、Reset
    15、Upgrade(Factory mode)、16、Ethernet port 17、10PIN Function interface。


    Products can be equipped with standing brackets:

    Face recognition thermometerFace recognition thermometer

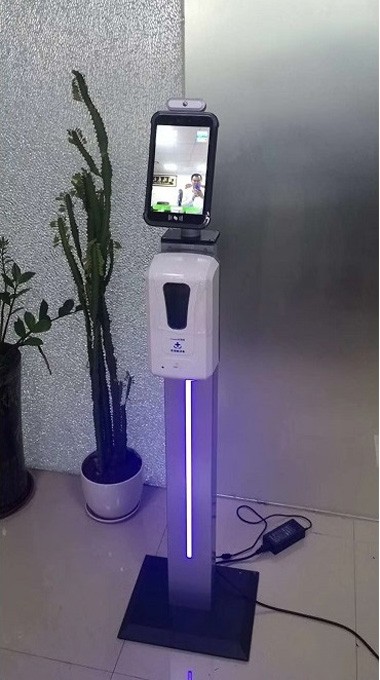

    This infrared human body temperature tester adds alcohol sterilizer, which can easily disinfect the external personnel
    It is a very recommended product to prevent the spread of virus

    For product videos, please click YouTube:https://youtu.be/4Nj_9s8qA7M


    Product Specifications:


    Model: DTYS08-9
    System
    Main processor Six cores/ Cortex-A72+4Cortex-A53
    operating system Android 7.1
    RAM 2G
    ROM 8GB
    Display
    size 7 inch IPS HD screen
    Resolution 800*1280
    camera
    Sensor 1/5   GC2145
    Resolution NIR 600*800 15fps
    Lens 2.4mm
    Face library capacity
    Supports up to 30,000 sheets
    Recognize face angle (Daytime) vertical viewing angle 58-60, horizontal viewing angle 35; (living body) vertical viewing angle 48-50, horizontal viewing angle 36
    Fault tolerance Ordinary glasses and short sea surface retention time have no effect on recognition
    expression Under normal circumstances, slight expressions do not affect recognition
    reaction speed About 200ms
    Facial exposure stand by
    Local storage Support 25,000 records
    Recognition area Full screen recognition
    Upload method TCP, HTTP, MQTT
    Network features
    Network protocol
    IPv4, TCP / IP, HTTP
    Interface Protocol
    no
    Safe mode
    Authentication username and password
    Alarm linkage mode
    Voice broadcast, abnormal upload
    System Upgrade
    Support remote upgrade
    Other
    /
    Hardware accessories
    Auxiliary light
    fill light, white light fill light
    speaker
    Support voice broadcast for successful recognition results
    Network module
    no
    Hardware interface
    Network Interface
    RJ45 10M / 100M Network Adaptation
    Alarm input
    no
    Alarm Output
    no
    RS485
